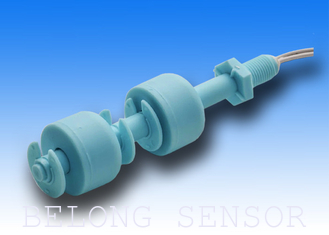

Liquid-Water-Level-Sensor-Reedswitch-Float Switch Plastic BLMF-142I switching current power rating contact form
BLMF-142I Product characteristics | |||||||
Dimension | |||||||
Mounting (Thread orientation) | Material | Stem Length(without thread) | Float OD | Fitting | Wire Length | Terminal | |
Vertical (Upwards, downwards) | PP | 142mm | 20mm (Can be customized) | M10 | 500mm (Can be customized) | SXN1-001T-P0.5 (Can be customized) | |
Key Electrical Parameters | |||||||
Contact Form | Max Power Rating | Max Switching voltage | Max Switching Current | Operating Temperature | Certification | Operation Point | Remark |
NO | 10W | 100 Vdc | 0.5 A | -10~70°C | RoHS, REACH, | Normally Open | Standard |
50W | 200 Vdc | 0.7A | (Max 110°C) | FDA | Normally Close& | ||
Remark:
1.All Products are RoHS, REACH, FDA compliant. All raw material are UL approved.
2. Above are all standard products.
