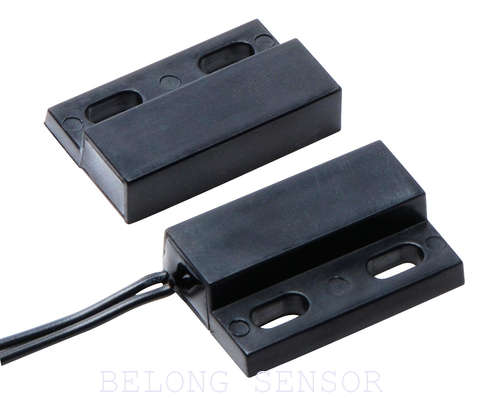

| BLPS-23R Product characteristics | ||||||
| Dimension | ||||||
| Casing Shape | Material | Casing Length | Casing Width | Casing Height | Wire Length | Terminal |
| Rectangle | ABS | 23mm | 14.5mm | 6mm | 350mm | without (Can be customized) |
| Key Electrical Parameters | ||||||
| Contact Form | Max Power Rating | Max Switching Voltage | Max Switching Curren | Certification | Operating Temperature | Remark |
| NO | 10 W | 100 Vdc | 0.5 A | RoHS, REACH, | 0～80°C | Standard |
| 50W | 200Vdc | 1A | FDA | 0～80°C | (Can be customized) | |
| SPTD | 5W | 175Vdc | 0.4A | 0～80°C | (Can be customized) | |
* Excellent insulation;Hermetically sealed reed switch; Can be used in extreme environment.
* Inductive distance is flexible by adjusting the material & shape of magnets and selecting different type of reed switches.
* Switch types of NO,NC,Change-over or Bitable available.
* Excellent lifetime and high product reliability.
* Operating Temperature:Standard 80 ℃,can be up to 250 ℃,SMD type applicable in the reflow soldering conditions up to 280 ℃
* Certification:ROHS,REACH,ALL raw materials are UL approved.
if you have any specical requirement,Please contact with us sales@belong-inc.com
