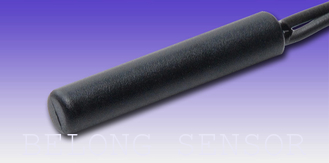

Belong Proximity Switch Magnetic Reed switch-Cylindrical BLPS-01-A 10W 100 Vdc 0.5A

Contact Now

Detailed Product Description

BLPS-01-A Product characteristics
Dimension

Casing Shape	Material	Casing Length	Casing Diameter	Wire Length	Terminal
Cylindrical	ABS	5.6mm	30mm	350mm	Without (Can be customized)
Cylindrical	ABS	5.6mm	30mm	(Can be customized)	Without (Can be customized)
Key Electrical Parameters
Contact Form	Max Power Rating	Max Switching Voltage	Max Switching Current	Certification	Operating Temperature	Remark
NO	10 W	100 Vdc	0.5 A	RoHS, REACH,	0～80°C	Standard (Can be customized)

Remark:

1.All Products are RoHS, REACH, FDA compliant. All raw material are UL approved.

2. Above are all standard products.

3."NO" means normally open,"NC" means normally closed;SPDT is single-pole double-throw,means change-over.

4.Above parameter are selectable.

if you have any specical requirement,Please contact with us sales@belong-inc.com
